Consultancy

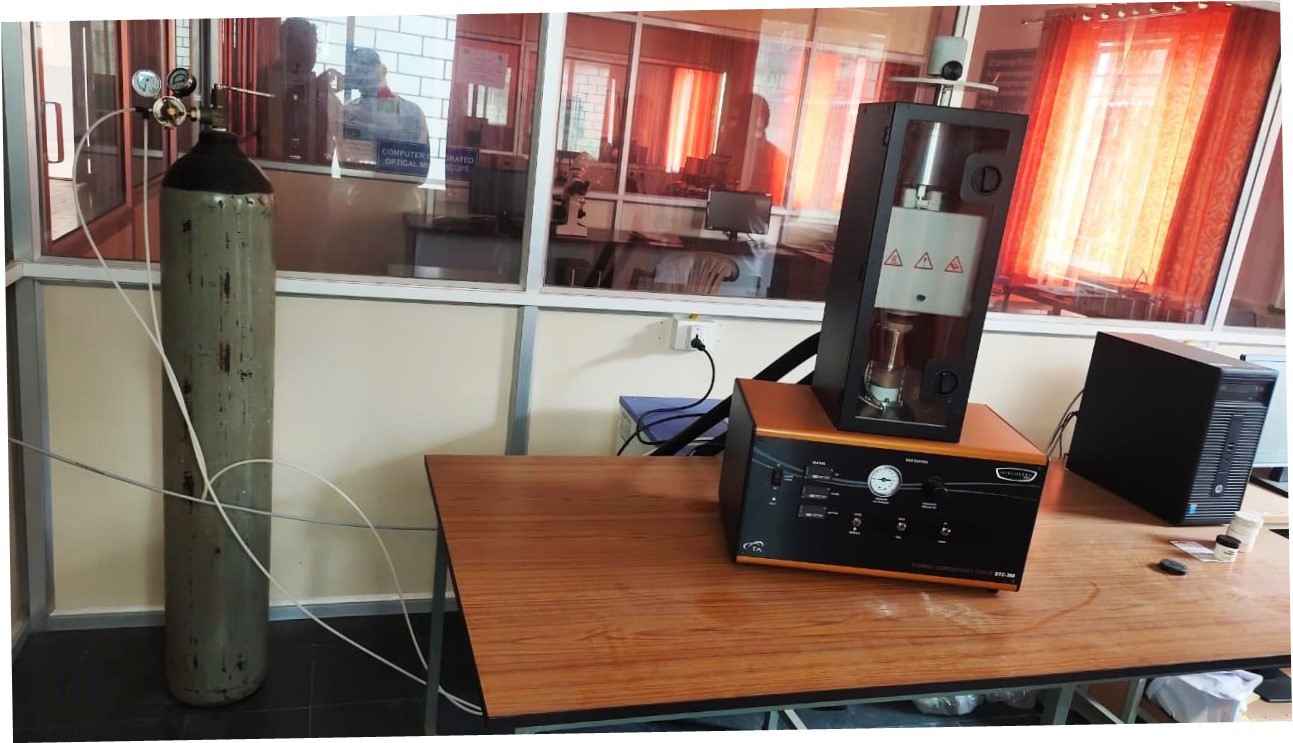

Direct Thermal Conductivity
Impact Tester

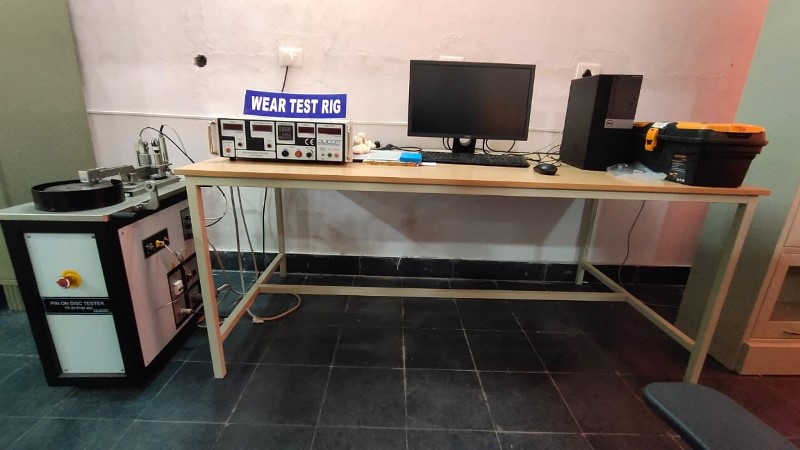

Wear Test Rig
Tensometer
Sonicator

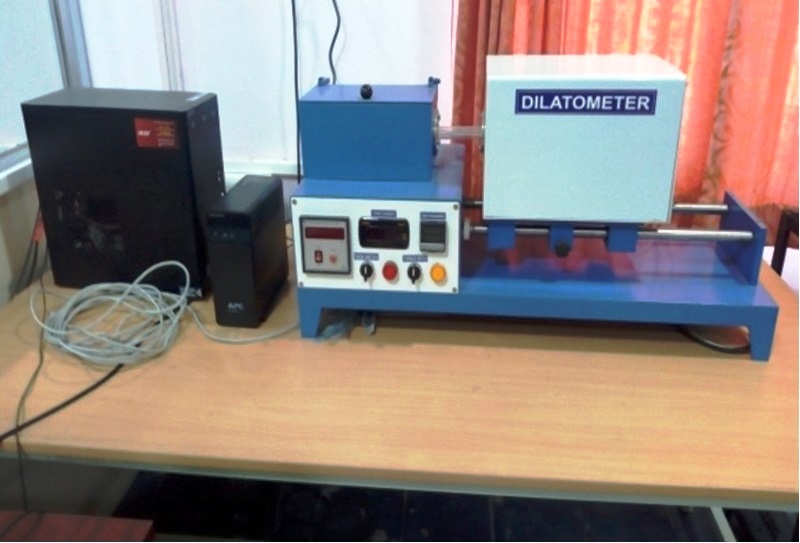

Dilatometer

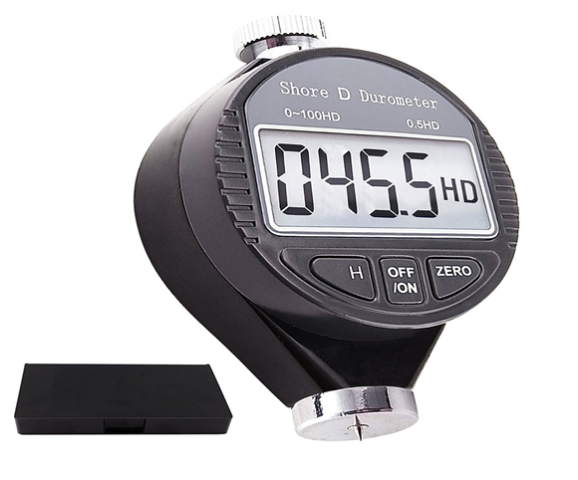

Durometer (Shore D Hardness Tester)

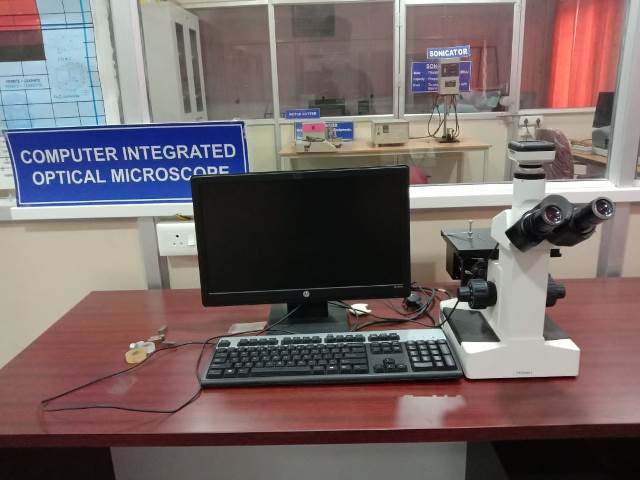

Computer Integrated Optical Microscope
Our Metallurgical Microscope meets wide-variety of analysis applications, from a routine inspection to sophisticated analysis of weld metal study. We have Metallurgical Image Analysis Software with Accuracy, repeatability and authentic results. Most advance & user friendly and User defined macro.
1. Batch runs facilities available.
2. 1:1 magnification and equivalent field of view Database.
3. Online image processing.
4. Any type of customization possible with our software.
5. Calibration traceable to NABL standard.
6. Color Images Processing.
7. Phase analysis based on color and shapes.
8. Image of any size can be processed.
9. Capture speed one image / second.
10. Online capture and simultaneous processing of many no of images at very short duration.
11. Data and images can be transferred to both word and excel format
12. Micron Marker incorporated in the image.
| Optical System | Plan Achromatic, Antireflection coated Optical system |
| Stand | Sturdy build inverted Microscope design |
| Observation Head | High Transmission sidentopf Trinocular |
| Eye pieces | WF 10x (Paired) |
| Plan Objectives (Anti Fungus) | Multilayer, Anti reflection coated plan metallurgical
objectives from Kyowa optics Japan consists of PLM 5X, PLM10x, PLM 20x and PLM 50x |
| Focusing | Low Position coaxial coarse and fine adjustment on ball track movement fro-greater reliability. Coarse motion range 35mm.
Fine Focus range 1.4mm |
| Nosepiece | Quadruple ball bearing nosepiece for perfect alignment |
| Stage | Coaxial graduated mechanical stage 180 mm x 150mm with z-
y travel 75 mm x 50 mm |
| Incident | Built in Koehler’s incident illuminations with 6v /20w |
| Illumination | Halogen Lamp, field and aperture diaphragm, also having
filters slot for yellow and green filters. |
| Magnification | 50X to 500X |
| Polarizing Attachment | Incident Polarizing Attachment for examination of inclusions,
bubbles, etching & scratches on materials with bire fringance. |

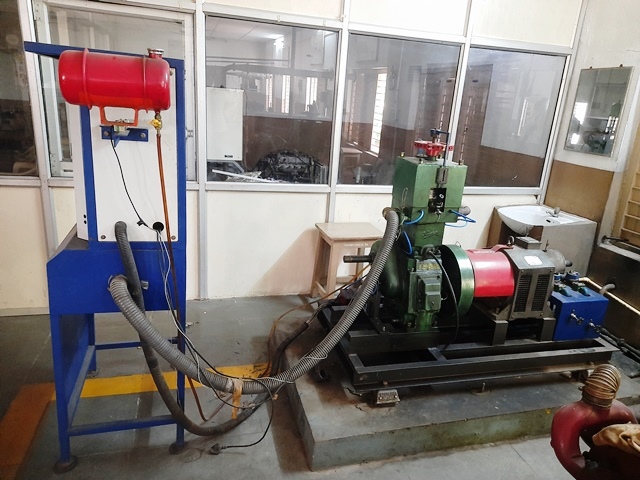

Variable Compression
Purpose: Performance and emission characteristics of Bio diesel
Specifications:
Kirloskar, 4 Stroke 1 Cylinder Water Cooled Diesel Engine
Rated Power: 3.7KW (5HP)
Bore Diameter: 80mm
Stroke Length: 562cc
Compression Ratio: 12:1 to 20:1
COORDINATE MEASURING MACHINE (CMM)
Purpose: Measurement of geometric characteristics of an object
Make & Model : Accurate India, Spectra
Specifications: Operation: CNC
Overall Machine Dimensions (LxWxH): 1500 x 1445 x 2350 mm
Measuring Range: X axis: 500mm, Y axis: 600mm, Z axis: 400mm
Max. Permissible error: 2.2 micron

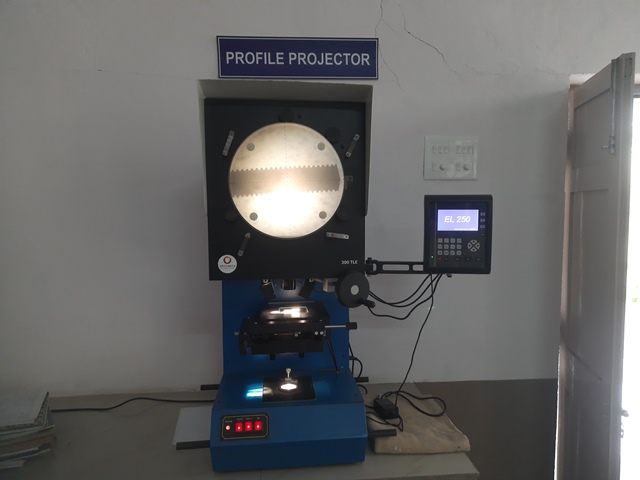

Profile Projector
Purpose: Linear and Angular Measurement
Make: OPTOMECH, Model: 300 TE Table Top Vertical Profile Projector
Specifications: Magnification: 20X
Work Piece Capacity: 1) Load Capacity: 20 kgs
2) Max Diameter: 150 mm
Accuracy: +/- 0.1%
Least Count: 0.001 and 2min

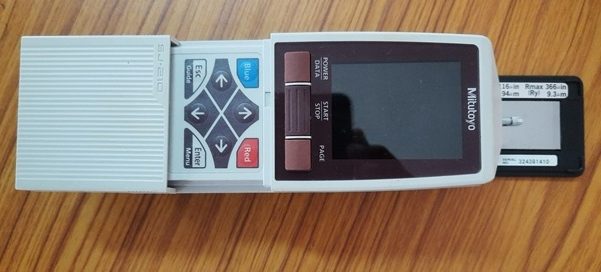

Surface Tester
